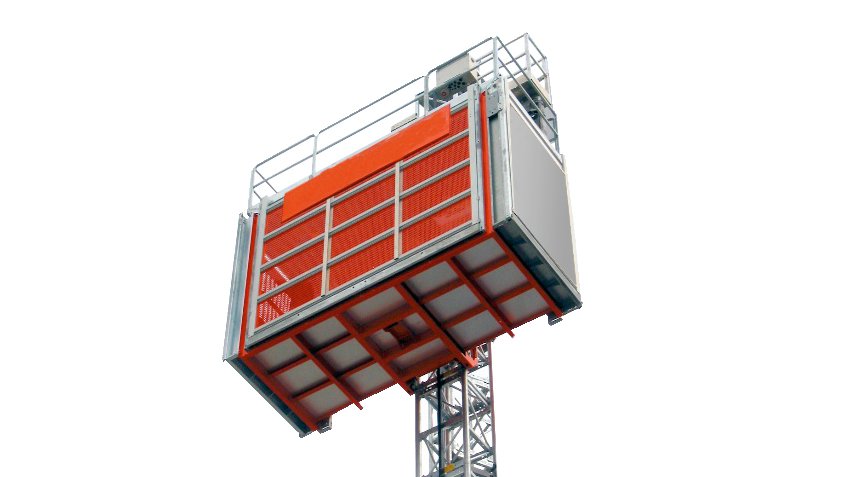

Alimak Scando 12/30 Passenger Hoist Hire
The Alimak Scando 12/30 construction hoist is a passenger goods hoist with 1,200 kg payload capacity and an internal cabin dimension of 1.3 x 3.0 metres. This hoist is certified to transport both personnel and materials combined and is therefore an ideal choice for high-rise buildings. This versatile rack and pinion passenger hoist can be erected up to a height of 200 metres with a compact base enclosure footprint of just 3.4 x 2.3 metre. If space is of a premium and additional vertical transportation is required this machine is available for hire as a twin hoist. This addition boasts two hoists running on a single mast utilizing ground space to the maximum. This makes the Scando 12/30 passenger lift a great choice of rental hoist for inner city high-rise construction when space is limited.
General data
- Hoist car configuration
- 3m x 1.3m
- Payload capacity
- 1200 kg
- Maximum passengers
- 15 people
- Lift speed
- 40 m/min
- Maximum travel height
- 100 m
- Maximum tie space
- 15 m
Dimensions & weight
- Platform size (WxL)
- mm
- Internal dimensions (WxLxH)
- 1300 x 3000 x 2550 mm
- Base landing size (WxL)
- 2330 x 3400 mm
- Entry door (WxH)
- 1230 x 2000 mm
- Opening width
- mm
- Weight base unit
- 2300 kg
- Mast section length
- 1.508 m
- Weight mast section
- 155 kg
Power supply
- Power supply
- 400 V / 3 PH / 50Hz
- Fuse
- 63 A
- Rated power output (continuous duty)
- 2 x 7.5 kW
- Power consumption
- 26 kVA
Alimak's Scando construction hoists
Alimak hoists are true market leaders of rack and pinion construction hoists for hire and sales. Versatile, reliable and safe are common characteristics of the Alimak brand. All Alimak hoists are supported by mast sections universal to the Scando range. This allows various configurations of Scando building hoists to be connected to the same mast, tailored to suit your specific building requirements. The Scando 12/30 passenger goods hoist is therefore an excellent choice for high-rise construction projects. The base is safely enclosed by means of a metal fencing with swing type landing doors for safe access and egress to the floor levels. Do you wish to rent a bespoke hoist car to meet the needs of your project? Please contact one of our hoist specialists for a specific quotation.
