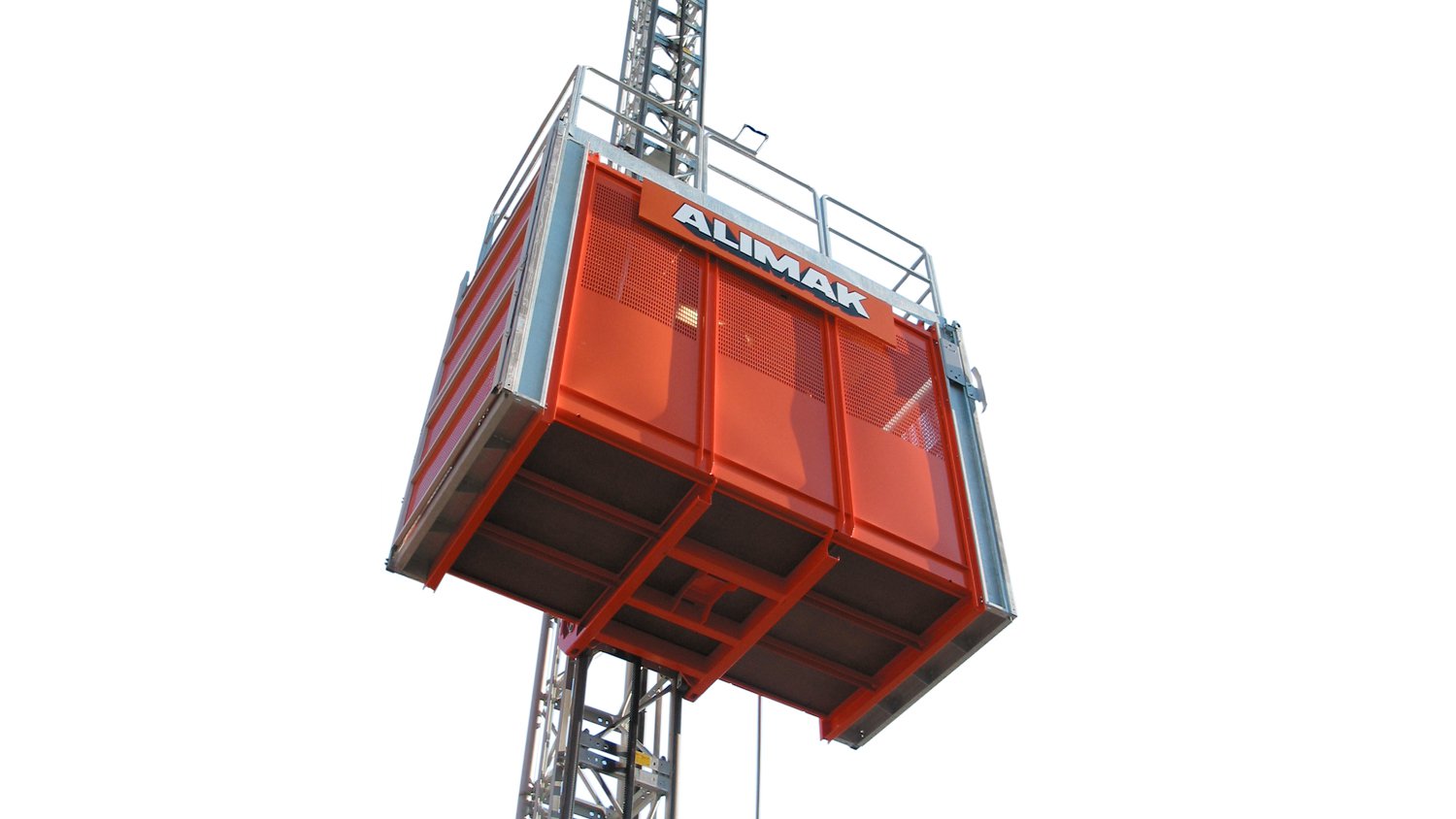

Alimak Scando 650 FC 39 Triple Engine Passenger Hoist Hire
These modern rack and pinion passenger goods hoists are constructed from lighter but still extremely robust materials, boasting a modular design across the range. This new design allows the 650 range of construction hoists to be not only larger and faster, but also capable of higher lifting capacities. The cabins are equipped with Alimaks latest technology, delivered in the form of their updated ALC control unit bringing an all improved hoisting experience, whilst ensuring optimum safety to the user. The Scando 650 FC 39 Triple Engine offers a bigger payload capacity and more speed in comparison to the dual engine passenger hoist. The enclosed hoist car has an internal cabin dimension of 1.5 x 3.9 x 2.3 metres (W x L x H), with the added benefit of both car and landing doors opening to the full cabin height. This machine is a real favorite within the UK construction market, used and loved by many of our customers.
Dimensions & weight
- Platform size (WxL)
- mm
- Internal dimensions (WxLxH)
- 1500 x 3900 x 2300 mm
- Base landing size (WxL)
- 2550 x 4600 mm
- Entry door (WxH)
- 1500 x 2300 mm
- Opening width
- mm
- Weight base unit
- 3450 kg
- Mast section length
- 1.508 m
- Weight mast section
- 135 kg
Power supply
- Power supply
- 500V 3PH 60 Hz
- Fuse
- 125 A
- Rated power output (continuous duty)
- 3 x 11 kW
- Power consumption
- 65 kVA
General data
- Hoist car configuration
- Payload capacity
- 3200 kg
- Maximum passengers
- people
- Lift speed
- 54 m/min
- Maximum travel height
- 200 m
- Maximum tie space
- 999999 m
Alimak's Scando construction hoists
Alimak hoists are true market leaders of rack and pinion construction hoists for hire and sales. Versatile, reliable and safe are common characteristics of the Alimak brand. All Alimak hoists are supported by mast sections universal to the Scando range. This allows various configurations of Scando building hoists to be connected to the same mast, tailored to suit your specific building requirements. The Scando 650 FC 39 passenger hoist is therefore an excellent choice for high-rise construction projects. The base is safely enclosed by means of a metal fencing with swing type landing doors for safe access and egress to the floor levels. Do you wish to rent a bespoke hoist car to meet the needs of your project? Please contact one of our hoist specialists for a specific quotation.
